Load Voltage 10~400V Flexible Cables Flexing Tester For Cable Testing Equipment
Product Introduction with Cable Testing Equipment:
Comply with standards:IEC60245-1, IEC60245-2.
Purpose:used for mechanical strength testing of finished flexible cables. This test is not applicable to cables with more than two concentric layers whose conductor nominal cross-section exceeds 18 cores.
Sample scope: finished flexible cable

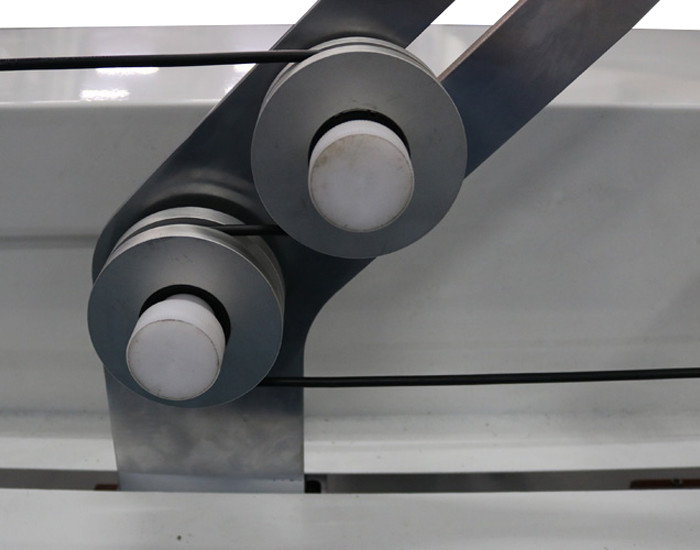

Structure and function:The 5m long sample moves reciprocally within a 1m stroke through a pair of pulleys to realize the bending test of wires and cables.
Product Parameters with Cable Testing Equipment:
| Power Supply | 220V, AC 3 phase, 60 HZ |
| Load Current | 0.5~25A, adjustable |
| Load Voltage | Line-to-line voltage 10~400V adjustable |
| Testing Speed | 0.33m/S |
| Testing Distance | 1000±20mm |
| Suitable Cores | 2-18 |
| Nominal Cross-sectional Area | 0.2~4mm² |
| Diameter of Pulleys | 60, 80, 120, 160, 200mm |
| Test Weights | 2*0.5kg with hook, 2*0.5kg with hole, 6*1kg with hole, 2*6kg with hook |

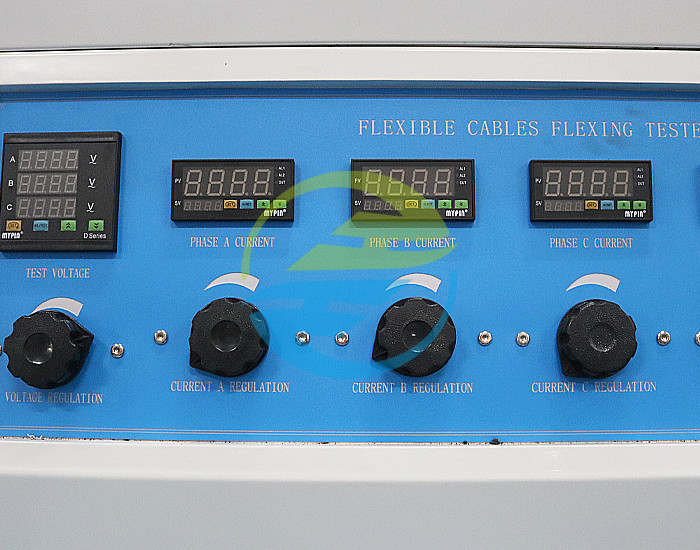

Product Image with Cable Testing Equipment:
