IEC 62133 Battery Testing Equipment Electric Vibration Testing System

  • 1
  • 2
  • 3

Brand Name : HongCe

Model Number : HCVT01

Certification : Calibration Certificate(cost additional)

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T

Supply Ability : 1 Set per month

Delivery Time : 40 days

Packaging Details : Plywood

Product Name : electrodynamic vibration test system

Tested product : Battery

Frequency range : 1~3000 Hz

Maximum displacemen : 76mm

Rated sinusoidal force : 3000kgf (30kN)

Vertical table : 1500mm×1500mm (customisable)

Horizontal table : 1500mm×1500mm (customisable)

Fan Power : 7.5KW

Contact Now

Electric Vibration Testing System IEC 62133 Battery Testing Equipment

Application of Battery Testing Equipment:

Vibration encountered of the battery during transportation shall not cause leakage, fire or explosion. The electrodynamic vibration test system is a precision test equipment that simulates the actual working environment of a battery.

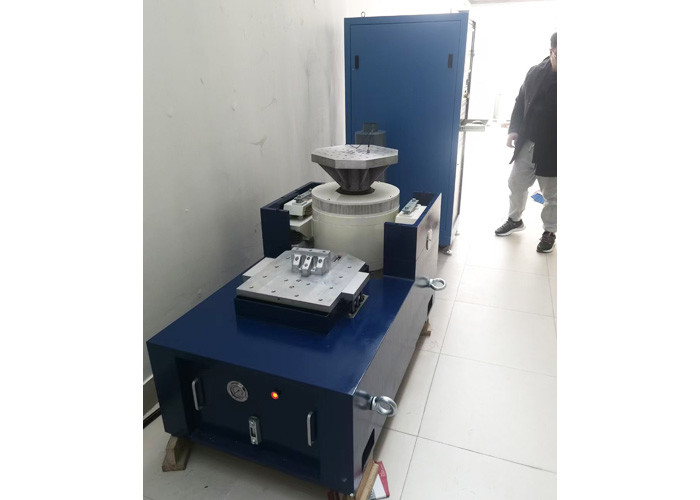

The vibration test system consists of four parts: vibration test bench, power amplifier, controller and cooling fan.

Standard of Battery Testing Equipment:

IEC 62133-1 Secondary cells and batteries containing alkaline or other non-acid electrolytes -Safety requirements for portable sealed secondary cells, and for batteries made from them, for use in portable applications - Part 1:Nickel systems clause 7.2.2;

UN38.3 T3:Vibration

Parameter of Battery Testing Equipment:

Electric Vibration Test bench
Rated sinusoidal force (peak) 3000kgf (30kN)
Rated random force (peak) 3000kgf (30kN)
Rated shock force (peak) 6000kgf (60kN)
Frequency range 1~3000 Hz
Maximum displacement (p-p) 76mm
Maximum Acceleration 980m/s2 (100g)
Maximum load 500 kg
Table diameter Ф320mm
Equivalent mass of moving parts 30kg
Table screw 12×M12
Dimension L×W×H 1940×1640×1100mm
Weight About 3100kg
Power Amplifier
Amplifier Output 35KVA
Output Voltage 120Vrms
Signal to Noise Ratio >65dB
Power Amplifier Efficiency >95%
System Protection Temperature protection, over-displacement protection, over-voltage protection, over-current protection, under-voltage protection, external protection, logic fault protection
Dimensions 580×1020×1800mm
Weight 600kg
Vertical extension table
Table Size 1500mm×1500mm
Table Weight 350kg
Highest frequency 200Hz
Material Aluminium alloy
Horizontal Slide Table
Table Size 1500mm×1500mm
Table Weight 350kg
Highest frequency 200Hz
Material Aluminium alloy
Vibration controller

Functions

Based on Windows 7 operating system

Basic functions: Sine, Random, Random+Sine, Random+Random, Typical Shock, Resonance Search and Dwell, Transient Shock, Shock Response Spectrum.

2 input channels, 1 output channel, 1 COLA output, reserved with the environmental test chamber linkage interface function (digital I / O interface)

Fan
Fan Power 7.5KW
Air volume 0.52M3/s
Wind Pressure 5.8Kpa
Dimensions 1100*800*1400mm
Duct length 4m
Weight 140kg
Accelerometer
Frequency Range 0.3-8000Hz±10%
Measuring Range 2000g
Impact Resistance 2500g
Line length 5m
Operating Temperature -40-150℃
Weight 35Gram
Installation Method M5
