IEC60227-2 clause 3.3 Snatch test
The requirements are given in 5.6.3.3 of IEC 60227-1.
A sample of cord of appropriate length shall be attached by one end to a rigid support and a weight having a mass of 0,5 kg shall be secured to the sample 0,5 m below the point of attachment. A current of about 0,1 A shall be passed through the conductors. The weight shall be raised to the point of attachment and then dropped, five times. Cable Testing Equipment

Introduction:

The cord snatch tester is designed and manufactured according to IEC 60227-1 clause 5.6.3.3, IEC 60227-2 clause 3.3. It is used to testing the damage degree of flexible cord when applying a certain gravity pull. Test object of rated voltages up to and including 450/750V polyvinyl chloride insulated cables. Cable Testing Equipment

The test device is easy to operate, can preset the number of test times (up to 999999 times), the test speed can be adjusted, load current 0-1A stepless adjustable, and with the current conduction detection function. Tester will stop automatically when preset test times completed or detected conduction interrupt, record the tested times and alarm with sound. The equipment is manufactured according to the standard and the sample fixture matches the multiple samples. The utility model has the advantages of beautiful appearance, strong function and high reliability, and is an indispensable equipment for cable manufacturers and laboratory testing. Cable Testing Equipment

Technical Parameters:

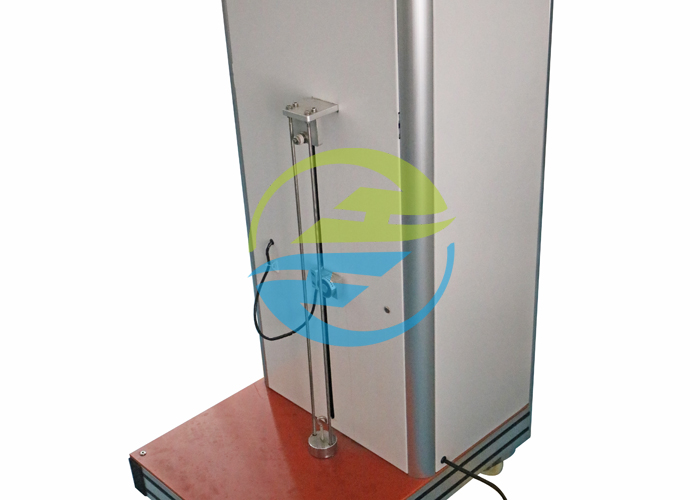

Picture for reference:

Clause 3.3 Cable Testing Equipment

IEC 60227-2 Cable Testing Equipment

0.5m Drop Height Cable Testing Equipment
