48rpm Label Marking Abrasion Test Machine - 20mm Test Stroke - IEC60730-1

Name: 48rpm Label Marking Abrasion Test Machine 20mm Test Stroke IEC607301
Brand: HongCe
Price: 1 USD

48rpm Label Marking Abrasion Test Machine - 20mm Test Stroke - IEC60730-1 Manufactures

Brand Name : HongCe

Model Number : IN-2

Certification : calibration certificate (cost additional)

Place of Origin : China

MOQ : 1 set

Price : Negotiatable

Payment Terms : T/T

Supply Ability : 10 set /month

Delivery Time : 20 days

Packaging Details : plywood

Power : 220VAC 50Hz

Standard : IEC60730-1

Brass washer : Φ60*2.5mm

Friction wheel : Φ65*7.5mm

Test sample : Label

Test station : 1

Test stroke : 20mm

Test rate : 48rpm

Contact Now

48rpm Label Marking Abrasion Test Machine - 20mm Test Stroke

A.1 Markings on controls shall be adequately indelible for safety and are therefore classified according to the requirements for indelibility:
A.1.1 Markings which are not mandatory within the requirements of this standard (IEC 60730-1).
A.1.2 Markings which are mandatory within the requirements of this standard but which are not accessible to the final user when the control is mounted or installed in the equipment. IEC Test Equipment

These markings have to be sufficiently resistant to removal to withstand the manual handling in the control manufacturer's factory after final inspection, being packed and transported to the equipment manufacturer's factory, and handled during installation. Additionally, the marking shall remain legible in the presence of any vapour or other contaminant likely to be present. IEC Test Equipment

Production introduction:

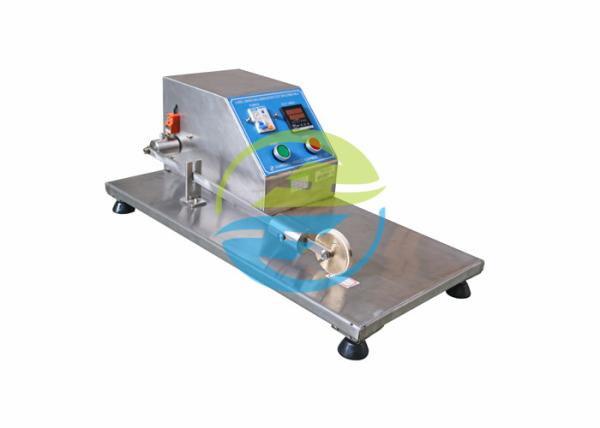

This testing apparatus is design and manufactured according to IEC60730-1 standard figure 8 and annex A requirements, used for testing the controller marking durability performance. IEC Test Equipment

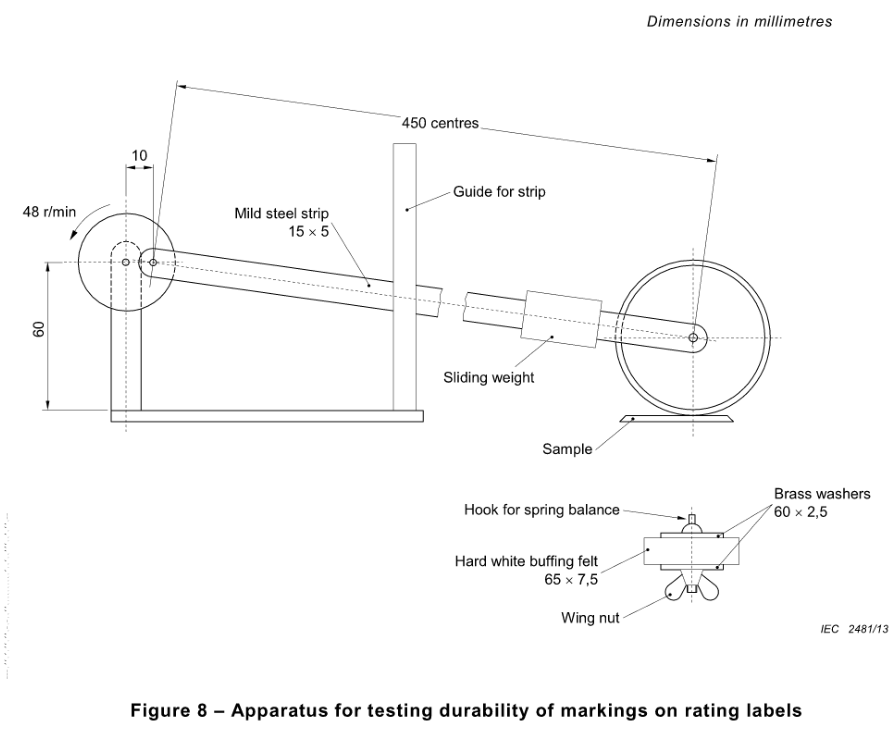

The apparatus comply with the dimensions requirements of IEC 60730-1 Figure 8. Test times can be set from 1 to 999999 (default as 12 times), test rate 48 rpm. It is a easy operated professional equipment.

Main technical parameters:

Equipment	Markings durability tester
Test station	1 station
Test stroke	20mm
Test rate	48rpm IEC Test Equipment
Test times	1~999999, default as 12times
Sliding weight	500g. Strip weight 250g, with weight 750g
Brass washer	Φ60*2.5mm
Friction wheel	Φ65*7.5mm
Power supply	220VAC 50Hz IEC Test Equipment
Standard	IEC 60730-1 Figure 8, Annex A

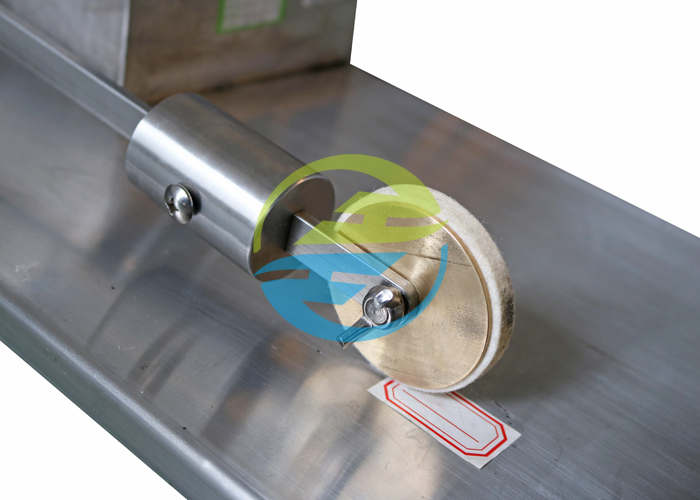

Picture for reference:
