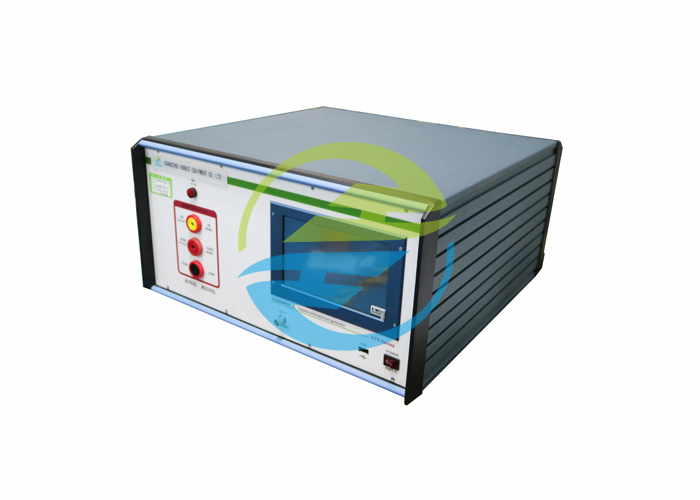

IEC60335-1 Clause 14 High Voltage Impulse Generator With Wave Shape 1,2/50 µs
IEC60335-1 Clause 14 Transient overvoltages
Appliances shall withstand the transient over-voltages to which they may be subjected.
Compliance is checked by subjecting each clearance having a value less than those specified in Table 16 to an impulse voltage test.
The impulse test voltage has a no-load wave shape corresponding to the 1,2/50 µs standard impulse specified in IEC 61180. The impulse test voltage is applied three times for each polarity with intervals of at least 1 s. IEC Test Equipment
Standard: Conforms to IEC60335-2-6 clause 14,clasue 16,IEC60335-2-9 clause 14,IEC60335-1 clause 14, IEC 60950-1:2013 clause 2.10.3.9, reference 2 of table N.1 and etc., IEC 60898-1 clause 9.7.
Feature:
7-inch touch LCD interface, rich in functions, easy to operate, easy to upgrade software IEC Test Equipment
Intelligent programmable high voltage power supply, built-in high voltage over voltage, over current and short circuit protection
Output intelligent detection, voltage error, no output warning
Parameters:
| Output voltage | 12kV (Max) ±5％ |
| Impulse wavefront time:
Impulse wavefront time:
Impulse wavefront time:
| 1.2μs ±30％ IEC Test Equipment |
| Half value of after wave time | 50μs ±20％ |
| Capacitance | 0.8U |
| Output polarity | Positive, negative, positive and negative cycle |
| Output resistance (optional) | 2Ω, 500Ω±10％ | 12Ω, 500Ω±10％ |
| Impact mode | Automatic or manual |
| Impact cycles | 1-9999 |
| Impact interval time | 3-999s(3s of which is the inherent charging time of the device) |
| Power source | AC220±10％, 50/60Hz |
| Dimension | 470mm×260mm×500mm |
| Weight | 30kg IEC Test Equipment |
Pulse generating unit equivalent circuit:

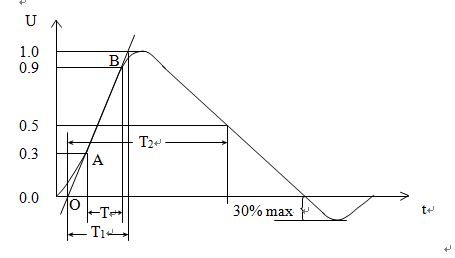

Output waveform definition Voltage wave
Leading edge time: T1=1.67T=1.2μs±30%
Half-peak time: T2=50μs±20% IEC Test Equipment
