IEC60335-2-14 Test finger Probe With Diameter 125mm Circular Stop Face Probe Length 100mm

Name: IEC60335214 Test finger Probe With Diameter 125mm Circular Stop Face Probe Length 100mm
Brand: HongCe
Price: 1 USD

IEC60335-2-14 Test finger Probe With Diameter 125mm Circular Stop Face Probe Length 100mm Manufactures

Brand Name : HongCe

Model Number : HT-I02B

Certification : Calibration certificate(cost additional)

Place of Origin : China

MOQ : 1 set

Price : Negotiatable

Payment Terms : T/T

Supply Ability : 30 sets per month

Delivery Time : 3 days

Packaging Details : Aluminum box

Name : Large baffle test finger

Warranty : 1 Year

Application : vertify mechanical hazards

Standards : IEC61032,IEC60335-2-14

Baffle diameter : 125mm

Fingertip to baffle : 100mm

Color : White

Test sample : Blenders

Contact Now

IEC60335-2-14 Test Probe With Diameter 125mm Circular Stop Face, Probe Length 100mm

Standard of Test Finger Probe: IEC61032 figure 2 test probe B, IEC60335-2-14 clause 20.2.

Application of Test Finger Probe: This probe is intended to verify the stability and mechanical hazards of blenders.

Test sample of Test Finger Probe: Blenders.

Feature of Test Finger Probe: A test probe similar to that of test probe B of IEC 61032 but having a circular stop face with a diameter of 125 mm instead of the non-circular face, the distance between the tip of the test finger and the stop face being 100 mm.

Parameters(mm) of Test Finger Probe:

Model	HT-I02B
Name	Large Baffle Test Finger
Joint 1	30±0.2
Joint 2	60±0.2
Fingertip to baffle	100±0.2
Cylindrical	R2±0.05
Spherical	R4±0.05
Fingertip cutting bevel angle	37^o 0 -10′
Fingertip taper	14^o 0 -10′
Test finger diameter	Ф12 0 -0.05
Baffle diameter	Ф125±0.2
Applied standard	IEC60335-2-14

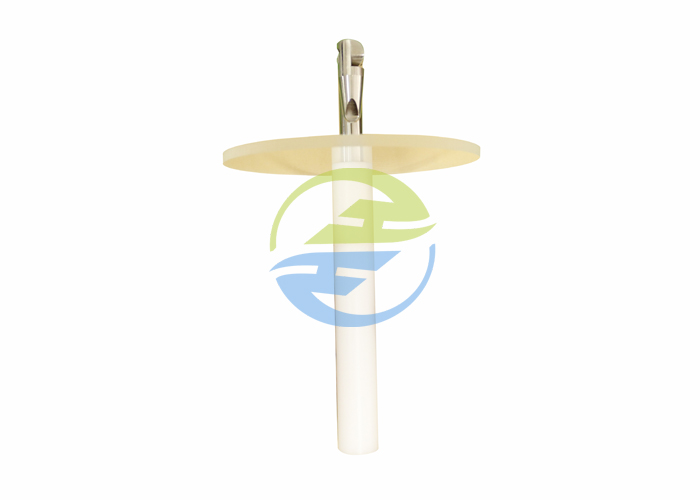

Picture for reference:

Our Services

1. owe more than 10 years experience in safety test equipment fiel,

2. Short lead time: 5days.

3. Factory price.

6. 50% deposit for producing,50% balance to be paid before shipment.

7. EXW, FOB, CIF C&F, FCA, DDU, and etc.
