IEC60335-2-25 Electrical Appliance Tester Microwave Oven Door Endurance Tester With 0°- 180 Opening Angle

Name: IEC60335225 Electrical Appliance Tester Microwave Oven Door Endurance Tester With 0 180 Opening Angle
Brand: HongCe
Price: 1 USD

IEC60335-2-25 Electrical Appliance Tester Microwave Oven Door Endurance Tester With 0°- 180 Opening Angle Manufactures

Brand Name : HongCe

Model Number : MDE-3

Certification : TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T

Supply Ability : 15 set/ month

Delivery Time : 30 days

Packaging Details : Wooden case

Model : MDE - 3

Opening Door angle : Touch screen settings , 0 - 180° adjustable

Station : One working station

Driver : Servo driver

Contact Now

IEC60335-2-25 Electrical Appliance Tester Microwave Oven Door Endurance Tester With 0°- 180 Opening Angle

Standard:

This microwave oven door endurance tester conforms to IEC60335-2-25 clause 18.

Application:

A dedicated tester which is used to inspect the wear resistance of the microwave door system, including the structure of the hinge, microwave seals and other related components that during use.

Feature:

Advanced PLC control system
Humanized touch screen operator interface
Adjustable rotation angle
Easy to operate, durable and practical.
Stainless steel manipulator,

Technical parameters:

Input voltage	230V/50HZ
Output power	2000W
Test station	Single (vertical and horizontal opening are switchable)

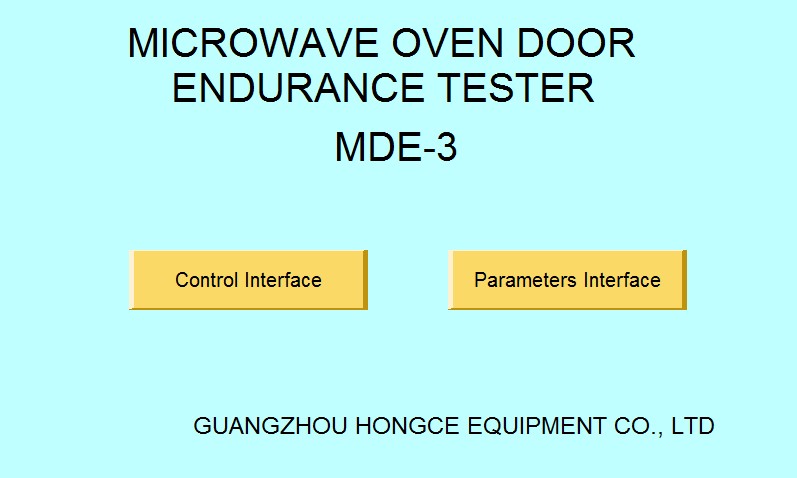

Operation mode	PLC 7-inch touch screen humanized operation interface operation
Driver	Servo motor
Testing maximum angle	(Microwave oven door opening angle) 0°- 180° (Adjustable input values)
Speed	Adjustable, 6 times / min under power on, 12 times/min under power off
Counting method	Digital counter, count once after door closing, automatically shut down after a preset number of times.
Automatic detection function	Alarm after the numbers of completions; if the internal components of the sample are damaged in the testing process, the testing equipment automatically shut down and record the final number of trials and activate the alarm device.
Outward appearance	Aluminum frame, Stainless steel closure plate
Dimensions	960mm * 960mm * 650mm, weight: 140kg
Conform to Standard	IEC60335-2-25

Picture View:

IEC60335-2-25 Electrical Appliance Tester Microwave Oven Door Endurance Tester With 0°- 180 Opening Angle
