Carton Compression Test Impact Testing Machine of compressive strength package deformation

Name: Carton Compression Test Impact Testing Machine of compressive strength package deformation
Brand: HongCe
Price: 1 USD

Carton Compression Test Impact Testing Machine of compressive strength package deformation Manufactures

Brand Name : HongCe

Model Number : SH-16

Certification : Third part calibration certificate(cost additional)

Place of Origin : China

MOQ : 1 set

Payment Terms : T/T

Supply Ability : 20 set per month

Delivery Time : 20 working days

Packaging Details : plywood

Price : Negotiatable

Test object : cartons, package

Standard : ISO2872, ISO2784, ISO12048, ISO2234

Test : compression test

Capacity : 1 T

Accuracy : ±0.5%

Displacement : 650~1500mm

Test speed : 0-5000N 12.5±2.5mm/min; 5001-10000N 10±3mm/min

Test space : 600~1500mm

Contact Now

Carton Compression Test Device

This device is suitable for testing the compressive strength of cartons, conduct compression, package deformation, stacking test.

Can be used for Corrugated carton, honeycomb board box pressure, package deformation, stacking test, plastic barrels (edible oil, mineral water), cardboard, cartons, paper cans, container barrels (IBC barrels) and other containers.

Specifications:

Capacity	1T
Accuracy	±0.5%

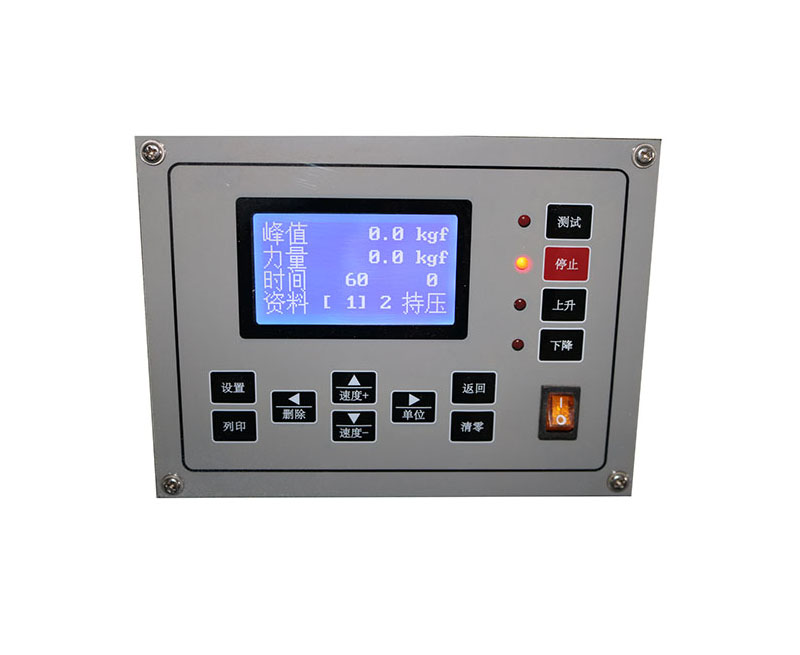

Control panel	can display and print test times, test value, peak value and fracture value etc.
Displacement	650~1500mm
Test speed	0-5000N 12.5±2.5mm/min; 5001-10000N 10±3mm/min
Test space	600~1500mm
Compressive strength test function	to determination of the ultimate compressive strength of the sample, the test machine will automatically record the peak pressure
Stacking strength test functions	to test the bearing durability of packaging by simulate storage conditions, tester compress the sample in a speed of 12.5(10)mm/min till the pressure reach preset force, when packaging deformation and pressure drop 5% set value, tester will automatic supplement pressure to the preset pressure and maintain till set test time completed, then tester will stop automatically.
Power gear	Ibf, N, Kgf
Transmission mode	precision ball screw drive
protection device	leakage protection, overload automatic shutdown protection, travel limit protection
print function	automatic print report
motor	Taiwan AC variable frequency motor
Power supply	AC220V 50Hz
Dimension	11008001300mm
Weight	approximate 300kg

Carton Compression Test Impact Testing Machine of compressive strength package deformation Feature:

Using double precision ball screw vertical structure, the overall of floor design
Transmission system using Taiwan AC inverter motor and streamline the utility of the transmission
Test speed is closed loop control, the regulation is convenient, the speed is stable
Measurement and control system using a single chip microcomputer as the central processing unit of digital circuit technology.
Test data display on control panel, can be printed by the printer, the whole structure is simple, functional, easy to operate and maintain.
