IEC 60730-1 Figure 8 Portable Appliance Tester Labels Marking Durability Tester
Production introduction:
This testing apparatus is design and manufactured according to IEC60730-1 standard figure 8 and annex A requirements, used for testing the controller marking durability performance.
The apparatus comply with the dimensions requirements of IEC 60730-1 Figure 8. Test times can be set from 1 to 999999 (default as 12 times), test rate 48 rpm. It is a easy operated professional equipment.
Main technical parameters:
| Equipment | Markings durability tester |
| Test station | 1 station |
| Test stroke | 20mm |
| Test rate | 48rpm |
| Test times | 1~999999, default as 12times |
| Sliding weight | 500g. Strip weight 250g, with weight 750g |
| Brass washer | Φ60*2.5mm |
| Friction wheel | Φ65*7.5mm |
| Power supply | 220VAC 50Hz (or 110VAC 60Hz) |
| Standard | IEC 60730-1 Figure 8, Annex A |
Operation procedures
1, preparation: access 220VAC 50Hz (or 110VAC 60Hz) power supply, turn POWER switch on, preset test times as 12.
2, choose corresponding weight and install the test sample.
3, press START button. The tester reciprocating movement according to 48rpm test rate and 20mm stroke, tester will stop automatically when preset test times completed.
4, STOP button is use to interrupt the tester while testing.

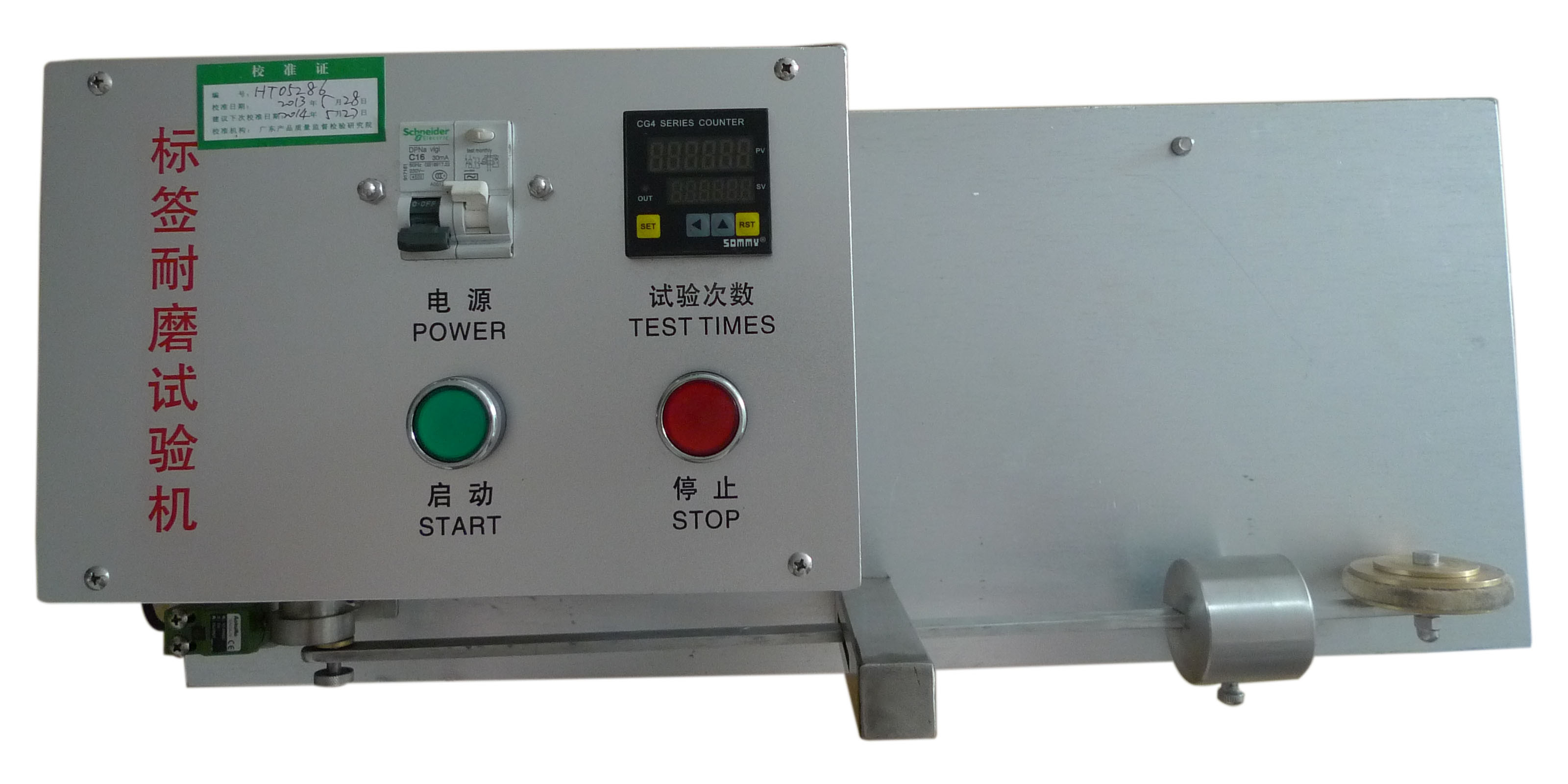

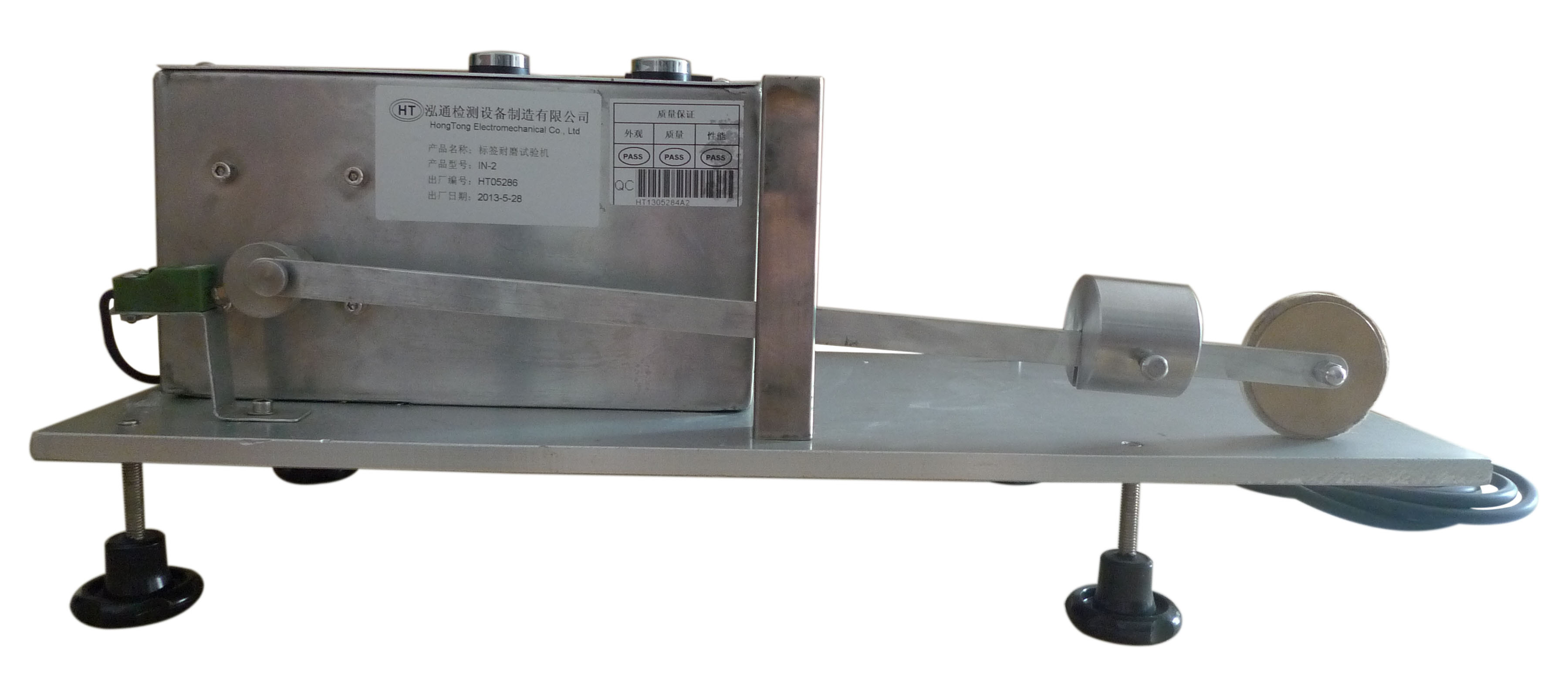

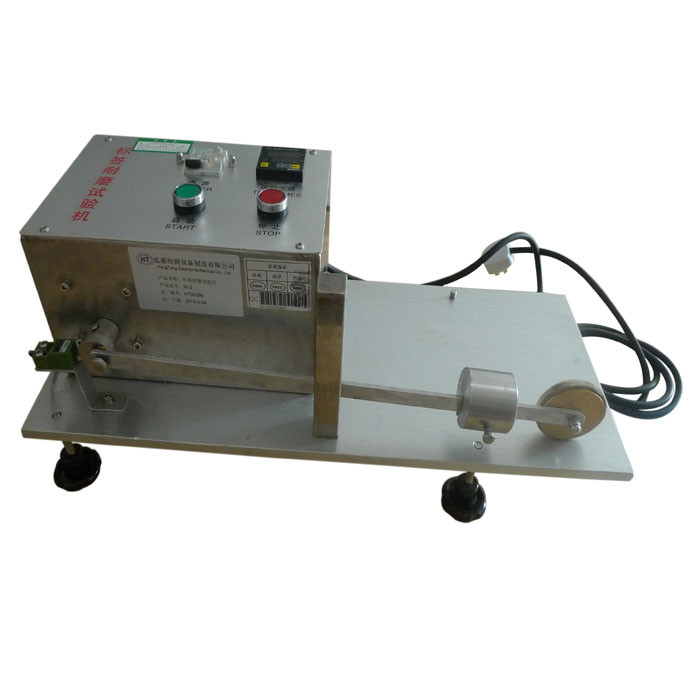

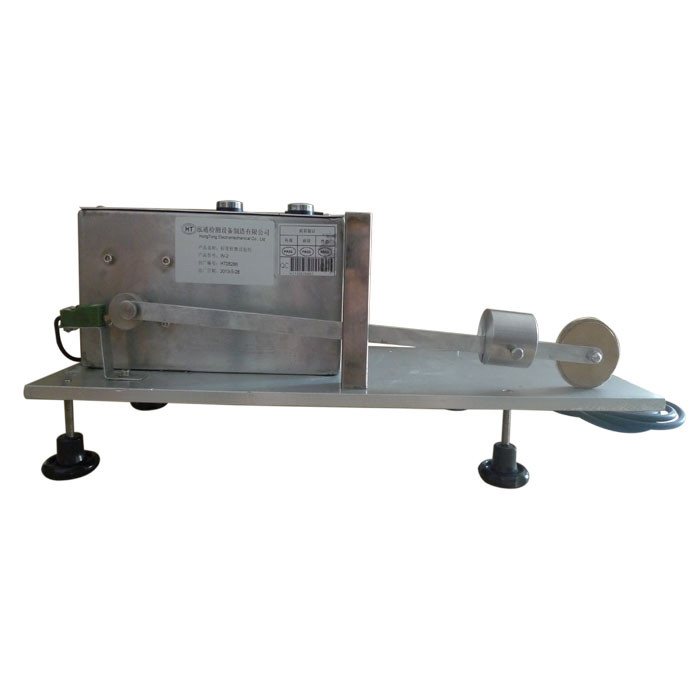

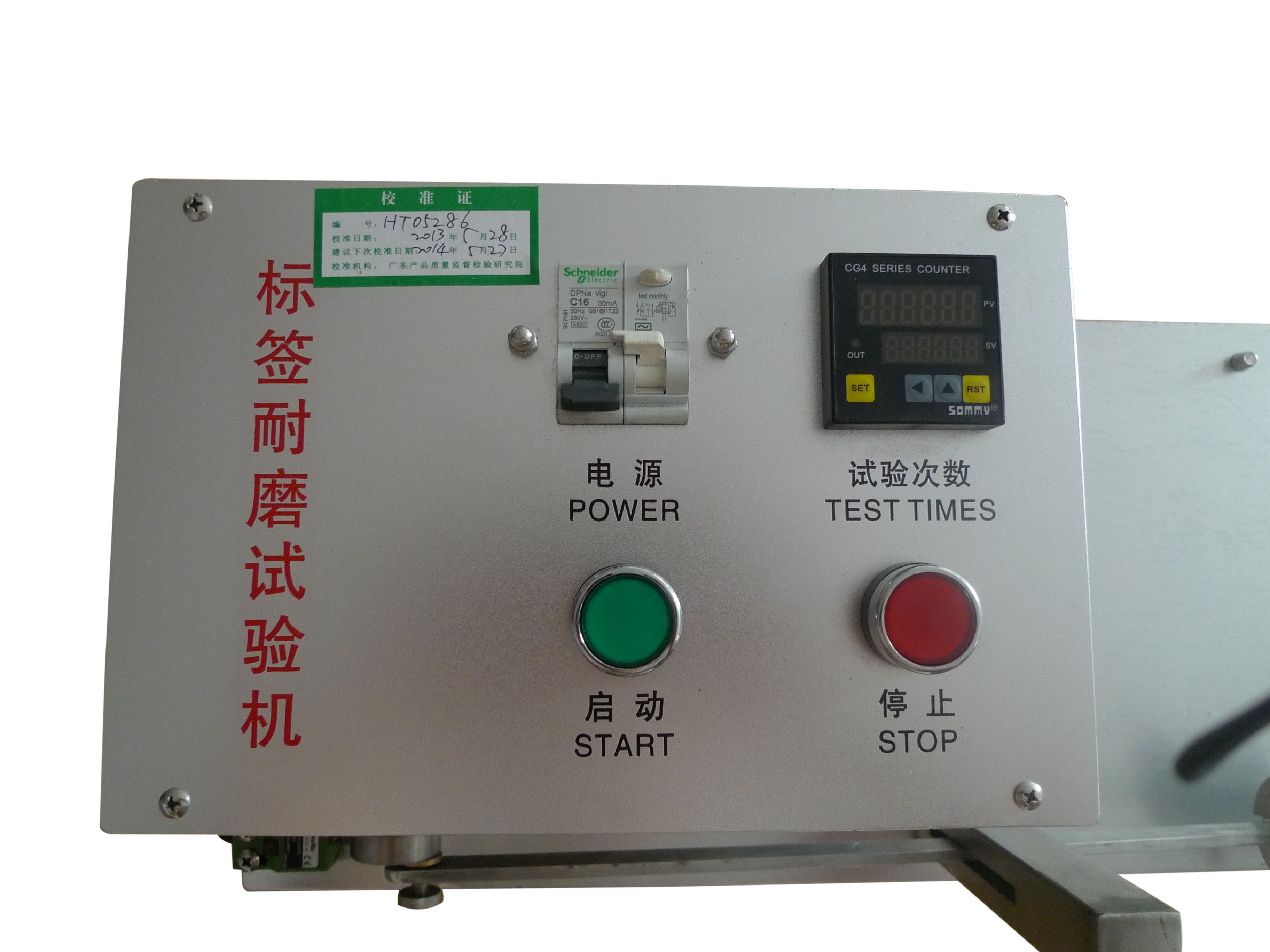

Photos
